Time Series Engine Deployment¶

Introduction¶

Default Configuration Information for Deployment¶

GuanceDB¶

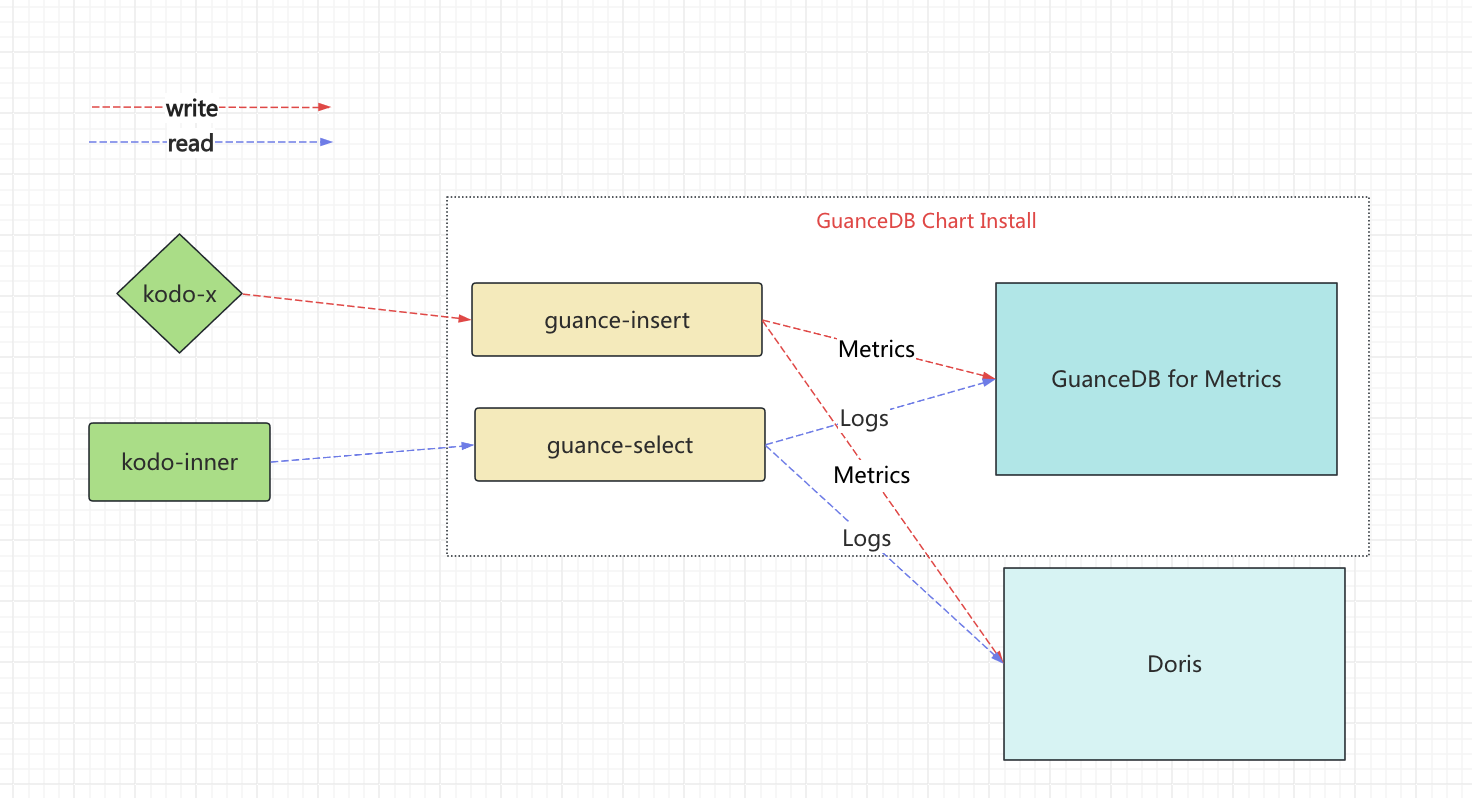

Cluster Architecture¶

The GuanceDB cluster consists of 3 components:

• guance-insert, a write load balancer that performs consistent hashing on raw data and then forwards it to storage nodes
• guance-storage, data storage nodes using share nothing architecture, no communication between nodes, no central coordination mechanism
• guance-select, DQL and PromQL query engine that retrieves raw data from all data storage nodes for computation and returns the final computed result

Component Details¶

guance-insert and guance-select are stateless and require maintenance of the guance-storage node list in the startup parameters, which can be scaled relatively freely.

guance-storage uses a structure similar to an LSM Tree in its storage design, not heavily dependent on disk random write performance. The write portion mainly relies on sequential read/write, while the query portion depends on random access. When selecting disks, as long as the sequential write bandwidth is sufficient and stable, it can support enough writes; if the random access performance is good, then the query performance will be high. We recommend running it on NVMe interface SSDs, but network disks with POSIX file system interfaces and excellent performance can also be used.

There isn't much internal state in the guance-storage process, mainly some query caches and temporarily stored unwritten data in memory. Data written will be temporarily stored in the process's memory for 1 second and then immediately written to the disk, without a WAL-like design. Therefore, if guance-storage crashes and restarts without high availability, there may be data loss within approximately 1 second, and the process will complete startup within 10 seconds, during which there will be a brief unavailability. However, when rotating several nodes for restarts, this actually does not cause noticeable fluctuations in the overall write volume.

Each component of the cluster automatically determines the current runtime environment and configures the concurrency number and available memory space within the process based on cgroup restrictions. In most cases, there is no need to optimize runtime parameters. During operation, the process attempts to use more memory to store cache data for writes and queries, and this memory usage may continue to grow but will not lead to OOM.

High Availability Solution¶

High availability has boundaries. When requiring unlimited high availability capabilities, it may also add endless costs. We should prepare our high availability solution according to the SLA commitment within the cost. And currently, we do not have a high availability commitment in the deployment version, i.e., we do not guarantee the available time each month. In such cases, if a single machine failure occurs, using Kubernetes for automatic recovery is sufficient.

However, databases generally have an implicit data persistence guarantee close to 100%, meaning that successfully written data is guaranteed not to be lost. Below, we will primarily discuss how to ensure data persistence.

As mentioned in the aforementioned architecture, the current write operation is sharded based on the Hash of the metric itself, ensuring that a single metric is written into the same data node across different time spans, thereby ensuring excellent write performance and a higher storage compression rate. However, the issue here is that the data itself lacks redundancy, and there is a risk of data loss when a single machine fails.

Here, we recommend two deployment solutions based on specific scenarios:

1. Use cloud disks. The data persistence of cloud disks is guaranteed by the cloud provider, so we don't need to do anything.
2. Use physical disks. When customers use physical disks, due to the risk of disk damage, we perform redundant writes at the upper layer.

Redundant writes are enabled on guance-insert, with the parameter -replicationFactor=N. After enabling, each piece of written data will be simultaneously written to N nodes by guance-insert, ensuring that the stored data can still be queried and used normally even if N-1 storage nodes are unavailable. The cluster needs to ensure at least 2*N-1 instances of storage nodes, where N is the number of replicas, and the storage nodes themselves are unaware of the number of data replicas.

The number of replicas N needs to be calculated based on the probability of disk failure, which is related to actual workload, disk type, and storage granularity. Assuming the probability of disk failure per node is K and they are independent events, assuming we guarantee a data persistence rate of 99.9999999%, the number of replicas N should satisfy N ≥ log(1 - K) / log(1 - 99.9999999%).

When multi-replica writes are enabled, the deduplication parameter -dedup.minScrapeInterval=1ms must be enabled on guance-select. Each query on guance-select concurrently reads data from all storage nodes and deduplicates data with intervals less than 1ms, ultimately ensuring that all query results remain unchanged.

Note that multi-replica writes and query operations increase additional CPU, RAM, disk space, and network bandwidth usage, increasing by a factor of the number of replicas N. Since guance-insert stores N replicas of input data on different guance-storage nodes, and guance-select needs to deduplicate replicated data from guance-storage nodes during queries, the query performance compared to non-replicated mode will decrease. Therefore, generally speaking, using cloud disks is more economical and better in terms of performance.

Capacity Planning¶

Different numbers of active sequences, new metric creation rates, query QPS, and query complexity will result in varying cluster performances. In actual scenarios, you can first set up with preset configurations and then adjust resources based on customer requirements. Accurate storage space estimation should also be planned by multiplying the daily storage space usage of the current customer by the data retention period.

We recommend reserving some backup resources:

1. All components should reserve at least 50% of memory to handle sudden write bursts and avoid OOM.
2. All components should reserve at least 50% of CPU to avoid slow writes and slow queries caused by sudden write bursts.
3. Reserve 20% of storage space on guance-storage nodes. Additionally, you can manually specify the -storage.minFreeDiskSpaceBytes parameter to reserve space and prevent the disk from being completely filled. Once there is no available storage space left, guance-storage will switch to read-only mode.

Based on a relatively common load scenario, we provide some specific capacity configuration recommendations, which already include a buffer:

For example, with 1 million time series, assuming each time series writes once every 10 seconds, the real-time write QPS would be 100,000/s, and the query QPS would be around 100, with data retained for 1 month.

Without enabling multi-replica writes, the total resource usage required by the cluster is:

1. guance-insert CPU: 4c, memory: 4G
2. guance-select CPU: 8c, memory: 8G
3. guance-storage CPU: 16c, memory: 96G, disk: 500G

In actual deployment processes, you can linearly increase or reduce the above resource scales based on 1 million time series as the baseline. When deploying multiple instances of components, the above resource usage can be distributed according to the number of instances. By default, guance-select, guance-insert, and guance-storage can each enable 2 instances.

InfluxDB¶

GuanceDB Deployment¶

apiVersion: storage.k8s.io/v1
allowVolumeExpansion: true
kind: StorageClass
metadata:
  annotations:
    cas.openebs.io/config: |
      - name: StorageType
        value: "hostpath"
      - name: BasePath
        value: "/data"
  name: openebs-data
provisioner: openebs.io/local
reclaimPolicy: Retain
volumeBindingMode: WaitForFirstConsumer

helm upgrade -i guancedb-cluster  guancedb-cluster --repo https://pubrepo.guance.com/chartrepo/guancedb -n middleware \
     --set guance_storage.persistentVolume.storageClass="<YOUR StorageClass Name>" \
     --set ingress.enabled=false \
     --create-namespace

$ kubectl get pod -n middleware -l app.kubernetes.io/instance=guancedb-cluster
NAME                                              READY   STATUS    RESTARTS   AGE
guancedb-cluster-guance-insert-589b89bd96-p4vdw   1/1     Running   0          11m
guancedb-cluster-guance-insert-589b89bd96-phb74   1/1     Running   0          11m
guancedb-cluster-guance-select-7df7dd4f6-dk4hj    1/1     Running   0          11m
guancedb-cluster-guance-select-7df7dd4f6-jrlsr    1/1     Running   0          11m
guancedb-cluster-guance-storage-0                 1/1     Running   0          11m
guancedb-cluster-guance-storage-1                 1/1     Running   0          10m

helm uninstall -n middleware guancedb-cluster

wget https://static.guance.com/guancedb/rpm/guance-storage-v1.5.17-1.el7.amd64.rpm && rpm -ivh guance-storage-v0.1.4-1.el7.amd64.rpm

wget https://static.guance.com/guancedb/deb/guance-storage-amd64-v1.5.17.deb && dpkg -i guance-storage-amd64-v1.5.17.deb

wget https://static.guance.com/guancedb/rpm/guance-storage-v1.5.17-1.el7.arm64.rpm && rpm -ivh guance-storage-v0.1.4-1.el7.arm64.rpm

wget https://static.guance.com/guancedb/deb/guance-storage-arm64-v1.5.17.deb && dpkg -i guance-storage-arm64-v1.5.17.deb

chown guance-user.guance-user /data

systemctl daemon-reload

systemctl start guance-storage

systemctl status guance-storage

journalctl -u guance-storage -f

wget https://static.guance.com/guancedb/rpm/guance-select-v1.5.17-1.el7.amd64.rpm && rpm -ivh guance-select-v0.1.4-1.el7.amd64.rpm

wget https://static.guance.com/guancedb/deb/guance-select-amd64-v1.5.17.deb && dpkg -i guance-select-amd64-v1.5.17.deb

wget https://static.guance.com/guancedb/rpm/guance-select-v1.5.17-1.el7.arm64.rpm && rpm -ivh guance-select-v0.1.4-1.el7.arm64.rpm

wget https://static.guance.com/guancedb/deb/guance-select-arm64-v1.5.17.deb && dpkg -i guance-select-arm64-v1.5.17.deb

...
ExecStart=/usr/local/guancedb/guance-select -storageNode=192.168.0.3:8401 -storageNode=192.168.0.4:8401 -envflag.enable=true -loggerFormat=json
...

systemctl daemon-reload

systemctl start guance-select

systemctl status guance-select

journalctl -u guance-select -f

wget https://static.guance.com/guancedb/rpm/guance-insert-v1.5.17-1.el7.amd64.rpm && rpm -ivh guance-insert-v0.1.4-1.el7.amd64.rpm

wget https://static.guance.com/guancedb/deb/guance-insert-amd64-v1.5.17.deb && dpkg -i guance-insert-amd64-v1.5.17.deb

wget https://static.guance.com/guancedb/rpm/guance-insert-v1.5.17-1.el7.arm64.rpm && rpm -ivh guance-insert-v0.1.4-1.el7.arm64.rpm

wget https://static.guance.com/guancedb/deb/guance-insert-arm64-v1.5.17.deb && dpkg -i guance-insert-arm64-v1.5.17.deb

...
ExecStart=/usr/local/guancedb/guance-insert -storageNode=192.168.0.3:8400 -storageNode=192.168.0.4:8400 -envflag.enable=true -loggerFormat=json
...

systemctl daemon-reload

systemctl start guance-insert

systemctl status guance-insert

journalctl -u guance-insert -f

rpm -Uvh <New Rpm Package>

dpkg -i <New Deb Package>

rpm -e guance-insert
rpm -e guance-select
rpm -e guance-storage

dpkg -P guance-insert
dpkg -P guance-select
dpkg -P guance-storage

InfluxDB Deployment¶

Installation¶

Save influxdb.yaml and deploy.

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  annotations:
    volume.beta.kubernetes.io/storage-provisioner: "kubernetes.io/nfs"
  name: influx-data
  namespace: middleware
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  volumeMode: Filesystem
  storageClassName: nfs-client
  # This field should configure an existing storageclass, if there is a default storageclass, it can be omitted #



---
apiVersion: v1
kind: ConfigMap
metadata:
  name: influxdb-config
  namespace: middleware
  labels:
    app: influxdb
data:
  influxdb.conf: |-
    [meta]
      dir = "/var/lib/influxdb/meta"

    [data]
      dir = "/var/lib/influxdb/data"
      engine = "tsm1"
      wal-dir = "/var/lib/influxdb/wal"
      max-values-per-tag = 0
      max-series-per-database = 0


---

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: influxdb
  name: influxdb
  namespace: middleware
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: influxdb
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: influxdb
    spec:
      # nodeSelector:     ## Configure this container to schedule to specified nodes, provided that the specified nodes are properly labeled ##
      #   app01: influxdb
      containers:
      - env:
        - name: INFLUXDB_ADMIN_ENABLED
          value: "true"
        - name: INFLUXDB_ADMIN_PASSWORD
          value: admin@influxdb
        - name: INFLUXDB_ADMIN_USER
          value: admin
        - name: INFLUXDB_GRAPHITE_ENABLED
          value: "true"
        - name: INFLUXDB_HTTP_AUTH_ENABLED
          value: "true"
        image: pubrepo.guance.com/googleimages/influxdb:1.7.8
        imagePullPolicy: IfNotPresent
        name: influxdb
        ports:
        - containerPort: 8086
          name: api
          protocol: TCP
        - containerPort: 8083
          name: adminstrator
          protocol: TCP
        - containerPort: 2003
          name: graphite
          protocol: TCP
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /var/lib/influxdb
          name: db
        - mountPath: /etc/influxdb/influxdb.conf
          name: config
          subPath: influxdb.conf
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
      volumes:
      - name: db
        #hostPath: /influx-data
        persistentVolumeClaim:
          claimName: influx-data
      - name: config
        configMap:
          name: influxdb-config
---
apiVersion: v1
kind: Service
metadata:
  name: influxdb
  namespace: middleware
spec:
  ports:
  - name: api
    nodePort: 32086
    port: 8086
    protocol: TCP
    targetPort: api
  - name: adminstrator
    nodePort: 32083
    port: 8083
    protocol: TCP
    targetPort: adminstrator
  - name: graphite
    nodePort: 32003
    port: 2003
    protocol: TCP
    targetPort: graphite
  selector:
    app: influxdb
  sessionAffinity: None
  type: NodePort

Execute command to install:

kubectl create namespace middleware
kubectl apply -f influxdb.yaml

Verify Deployment¶

• Check pod status

kubectl get pods -n middleware -l app=influxdb

How to Uninstall¶

kubectl delete -f influxdb.yaml
kubectl delete -n middleware pvc influx-data
