Custom Inspection¶

Guance supports custom intelligent inspections via DataFlux Func, based on intelligent algorithms, automatically detecting infrastructure and application issues, helping users discover problems that have occurred and potential issues during the operation of IT systems. Through root cause analysis, it quickly identifies the causes of abnormal issues.

DataFlux Func is a platform for developing, managing, and executing functions. It is simple to use, no need to build Web services from scratch or manage servers and other infrastructure. Just write code and publish it, with simple configuration generating HTTP API interfaces for the functions.

This document primarily introduces how to use the "Guance Custom Inspection Core Package" script package in the DataFlux Func Script Market to implement inspection functions in a self-built DataFlux Func environment.

Tip 1: Always use the latest version of DataFlux Func for operations.

Tip 2: This script package will continuously add new features, please keep an eye on document updates.

1. Prerequisites¶

• Install DataFlux Func

• Install Script Packages

2. Quick Start¶

To set up custom inspection, follow these steps:

1. In Guance's "Management / API Key Management", create an API Key for operations.
2. In your self-built DataFlux Func, install the "Guance Custom Inspection Core Package" via the "Script Market".
3. In your self-built DataFlux Func, write a custom inspection processing function.
4. In your self-built DataFlux Func, through "Management / Automatic Trigger Configuration", create automatic trigger configurations for the written function.

2.1 Writing Code¶

A typical custom inspection processing function is as follows:

from guance_monitor__register import self_hosted_monitor
from guance_monitor__event_reporter import EventReporter

API_KEY_ID  = 'wsak_xxxxx'
API_KEY     = 'xxxxx'
GUANCE_NODE = None

# Register custom inspection
@self_hosted_monitor(API_KEY_ID, API_KEY, GUANCE_NODE)
@DFF.API('Custom Inspection Example')
def run(param1=1, param2=True, param3=None):
    '''
    This is an example of custom inspection
    Parameters:
        param1 {int} Parameter 1
        param2 {bool} Parameter 2
        param3 {str} Parameter 3
    '''
    # Generate event reporter
    event_reporter = EventReporter()

    # ... Execute inspection processing and generate data
    event = {
        'title'  : 'Custom Inspection Example',
        'message': f'''
            Custom inspection content supports Markdown format, such as:

            1. Parameter `param1` value is `{param1}`
            2. Parameter `param2` value is `{param2}`
            3. Parameter `param3` value is `{param3}`
            ''',
        'status'        : 'error',
        'dimension_tags': { 'host': 'my_host' },
    }

    # Use event reporter to report events
    event_reporter.report(event)

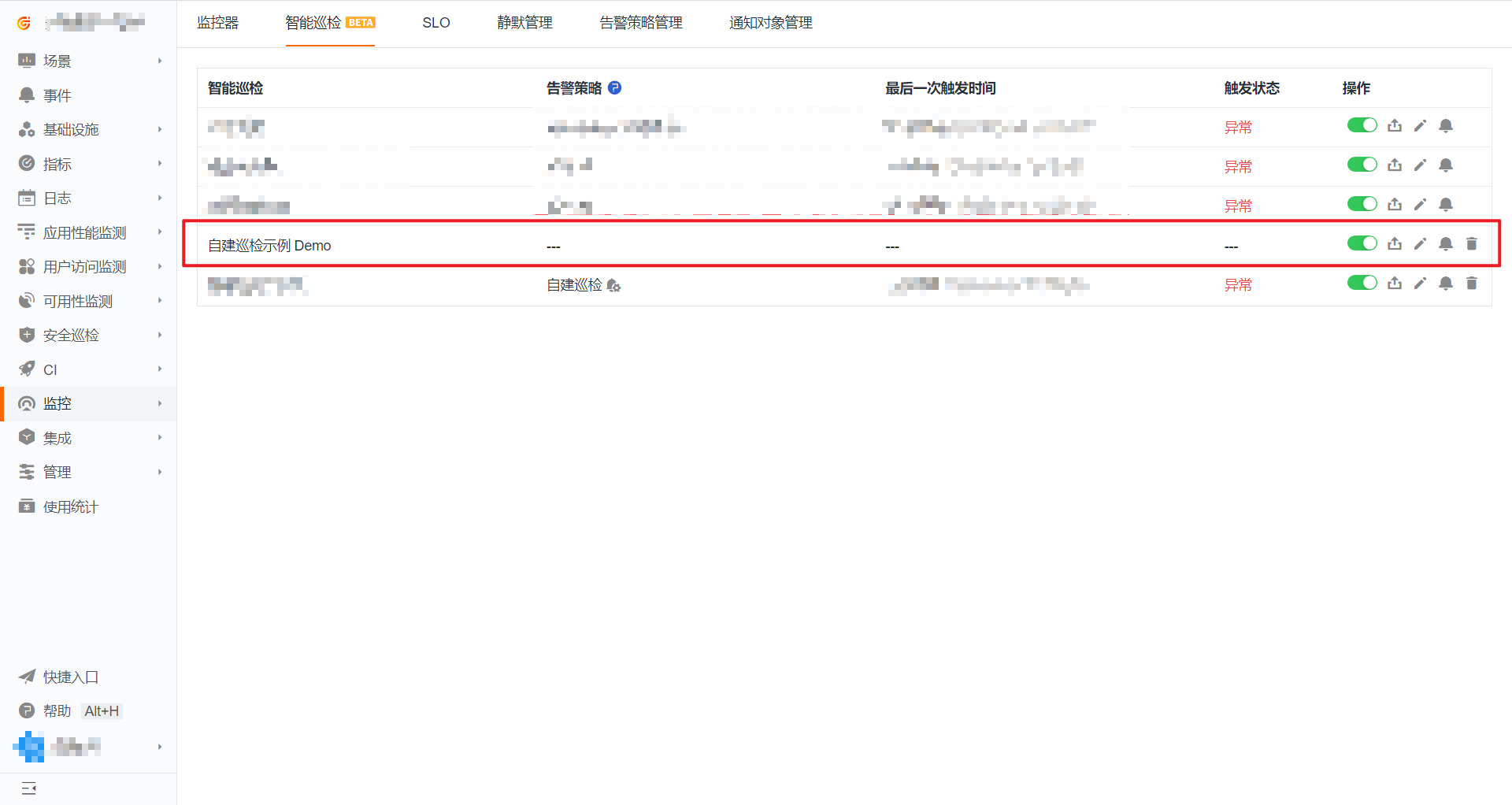

After publishing the script, the corresponding function will be registered in Guance, and can be seen in the Guance platform under "Monitoring / Intelligent Inspection".

2.2 Code Explanation¶

Below is a step-by-step explanation of the code in this example.

Import Section¶

In order to properly use scripts provided by the Script Market, after installing the script package, you need to import these components using the import method.

from guance_monitor__register import self_hosted_monitor
from guance_monitor__event_reporter import EventReporter

self_hosted_monitor is a decorator for custom inspection functions; only functions decorated with this decorator will be registered in Guance.

EventReporter is an event reporter used to report event data.

Custom Inspection Registration and Function Definition Section¶

Custom inspections that need to be registered in Guance must simultaneously satisfy:

1. First decorate with the @self_hosted_monitor decorator.
2. Then decorate with the @DFF.API(...) decorator.

API_KEY_ID  = 'wsak_xxxxx'
API_KEY     = 'xxxxx'
GUANCE_NODE = None

# Register custom inspection
@self_hosted_monitor(API_KEY_ID, API_KEY, GUANCE_NODE)
@DFF.API('Custom Inspection Example')
def run(param1=1, param2=True, param3=None):
    '''
    This is an example of custom inspection
    Parameters:
        param1 {int} Parameter 1
        param2 {bool} Parameter 2
        param3 {str} Parameter 3
    '''

Among them:

The decorator @self_hosted_monitor requires passing the API Key ID and API Key created in Guance's "Management / API Key Management".

The title specified in the decorator @DFF.API(...) will appear as the title of the custom inspection after registration.

The content in the function documentation will appear as the documentation on the custom inspection configuration page after registration.

Other Guance Nodes¶

If you need to connect to non-default nodes (Hangzhou) of Guance, then you need to pass the additional Guance node name parameter. The specific code example is as follows:

API_KEY_ID  = 'wsak_xxxxx'
API_KEY     = 'xxxxx'
GUANCE_NODE = 'aws'

@self_hosted_monitor(API_KEY_ID, API_KEY, GUANCE_NODE)
# Omitted below...

Regarding the optional values of GUANCE_NODE, refer to Available Guance Nodes

Event Section¶

The event data that needs to be reported is a simple dict, like:

    event = {
        'dimension_tags': { 'host': 'my_host' },

        'status' : 'error',
        'title'  : 'Custom Inspection Example',
        'message': f'''
            Custom inspection content supports Markdown format, such as:

            1. Parameter `param1` value is `{param1}`
            2. Parameter `param2` value is `{param2}`
            3. Parameter `param3` value is `{param3}`
            ''',
    }

Specific field definitions are as follows:

Note: Since DingTalk bots, Lark bots, and WeCom bots do not support all Markdown syntax, make appropriate choices when specifying the message field.

EventReporter Usage Section¶

Using the event reporter is very simple, but note that the EventReporter object must be instantiated inside the function body.

Correct example:

@self_hosted_monitor(API_KEY_ID, API_KEY)
@DFF.API('Custom Inspection Example')
def run(param1=1, param2=True, param3=None):
    event_reporter = EventReporter() # Correct example

    event = { ... }

    event_reporter.report(event)

Incorrect example:

event_reporter = EventReporter() # Incorrect example

@self_hosted_monitor(API_KEY_ID, API_KEY)
@DFF.API('Custom Inspection Example')
def run(param1=1, param2=True, param3=None):
    event = { ... }

    event_reporter.report(event)

Additionally, the EventReporter.report(...) method also supports reporting multiple events at once, such as:

@self_hosted_monitor(API_KEY_ID, API_KEY)
@DFF.API('Custom Inspection Example')
def run(param1=1, param2=True, param3=None):
    event_reporter = EventReporter()

    events = [ { ... } ] # Multiple event data as an array

    event_reporter.report(events)

3. Configuring Custom Inspections in Guance¶

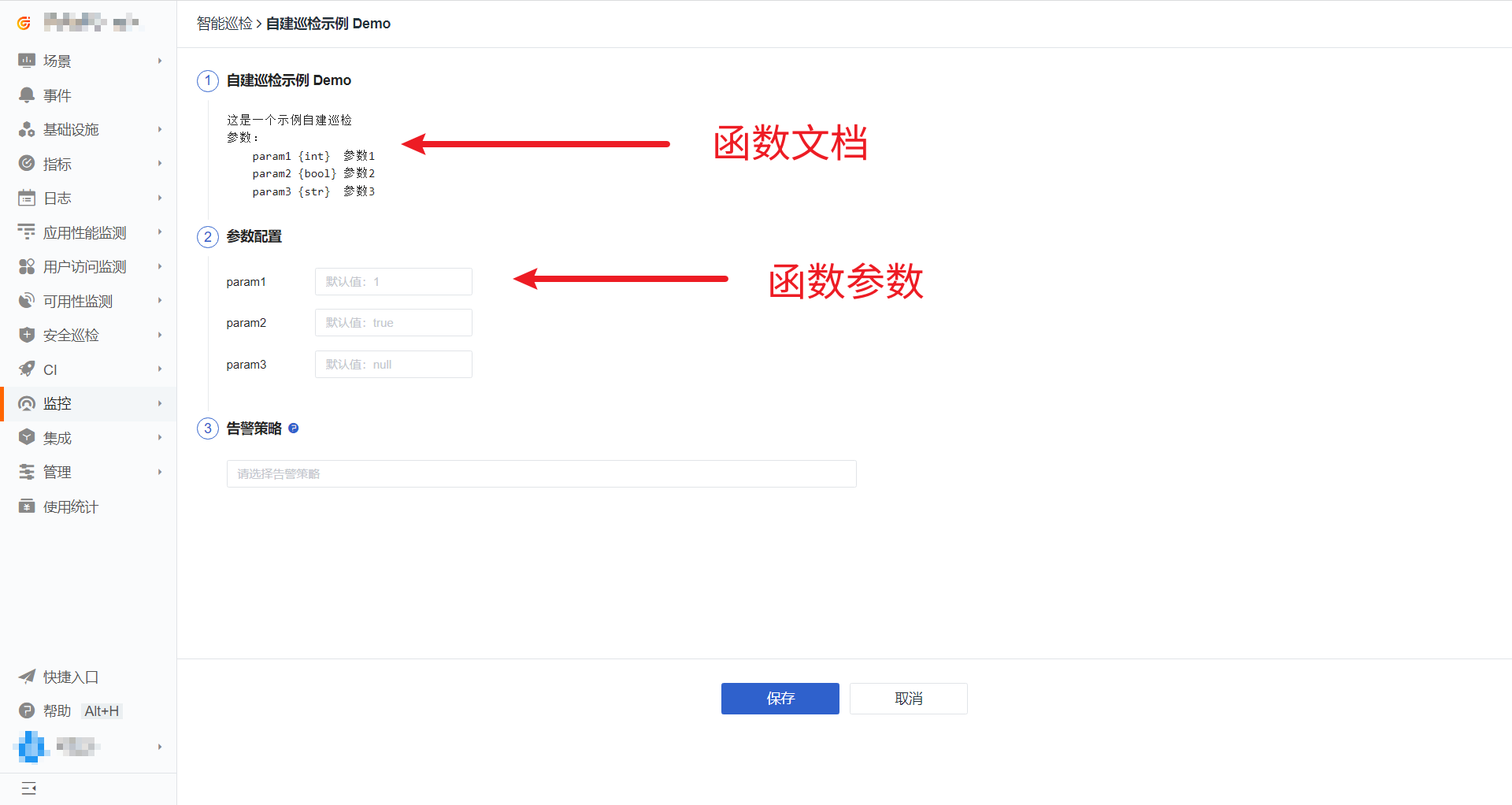

Registered custom inspection functions in Guance can be configured for running parameters and alert strategies on the Guance platform.

And the function documentation will also be displayed together, making it convenient for users to reference.

4. Configuring Automatic Triggers in Self-Built DataFlux Func¶

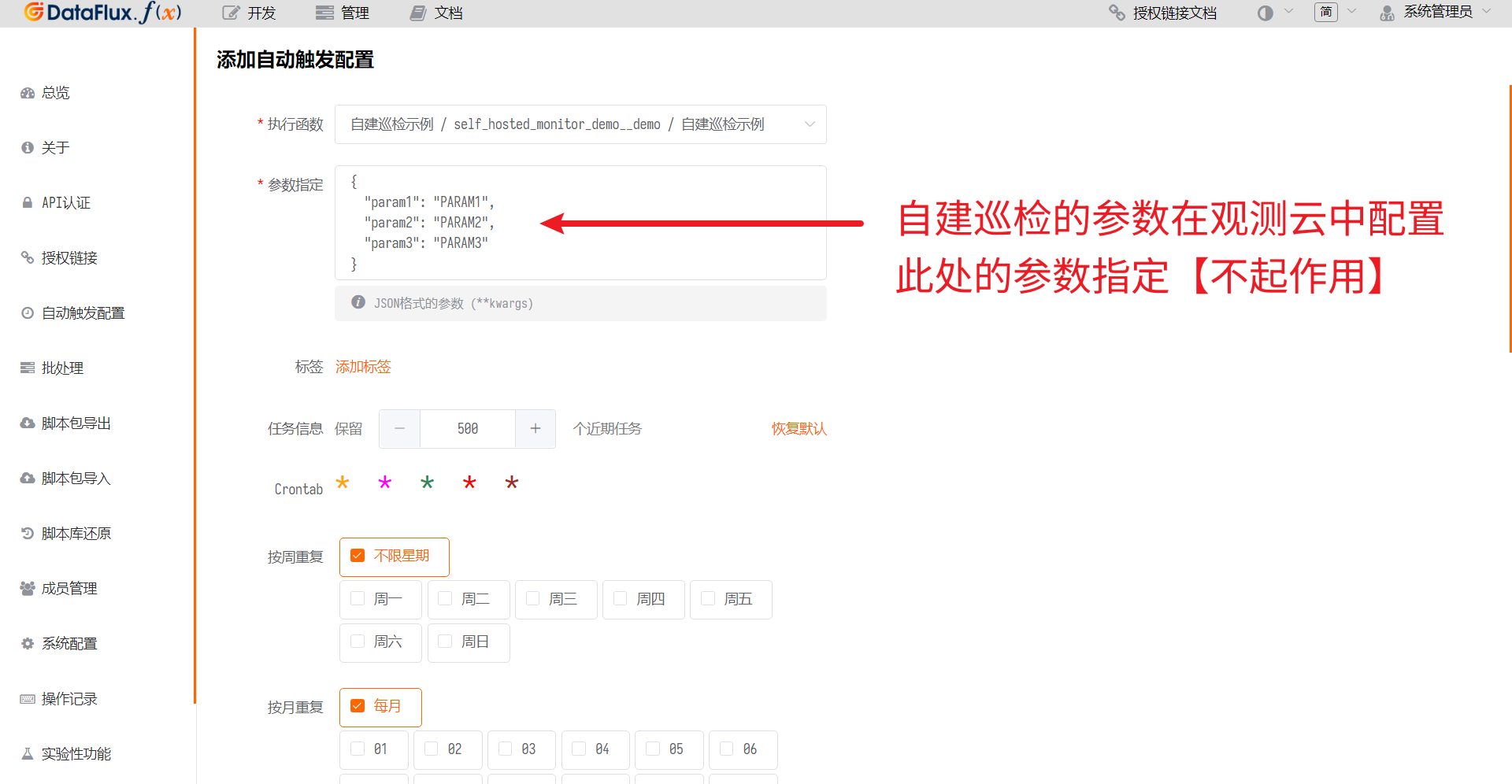

After completing the code and publishing it, navigate to the "Management / Automatic Trigger Configuration" section of your self-built DataFlux Func to create automatic trigger configurations for the function so that it actually runs.

Note: The parameters for custom inspections are configured in Guance. The parameters specified in "Automatic Trigger Configuration" have no effect.

After running for some time, you can view the generated events in Guance.

5. Precautions¶

When using custom inspections, note the following points.

5.1 Association Between Functions and Guance Custom Inspections¶

Custom inspection functions in self-built DataFlux Func generate associated keys with Guance based on "Function ID + DataFlux Func Secret Configuration".

Therefore, if any of the following items are modified, the function will be associated with a different custom inspection:

• Function name (def xxxx part)
• Script ID where the function resides
• Script set ID where the function resides
• Different DataFlux Func instances (i.e., different Secrets)

5.2 Function Registration¶

Functions decorated with @self_hosted_monitor attempt to access Guance and register the function each time they execute.

During registration, the function's title, documentation, and parameter list are updated to Guance.

After registration, the decorator downloads the corresponding custom inspection configuration (parameter specification) from Guance and runs the function with the parameters specified in the custom inspection configuration. Parameters configured in the automatic trigger will not take effect.

5.3 Disabling Custom Inspections in Guance¶

You can disable custom inspections in the Guance platform.

However, since Guance cannot control DataFlux Func data in reverse, the automatic trigger configuration in self-built DataFlux Func will still execute normally.

After execution, the @self_hosted_monitor decorator accesses Guance and checks whether the corresponding custom inspection has been disabled, thus deciding whether the user-written function needs to be executed.

Therefore, in self-built DataFlux Func, the automatic trigger configuration for custom inspection functions always runs. Only when the corresponding Guance custom inspection is disabled does it immediately terminate processing.

5.4 Deleting Custom Inspections in Guance¶

Custom inspections in Guance can be deleted. However, if the actual custom inspection exists, it will automatically recreate the custom inspection in Guance whenever it is published or run.

At the same time, since the UUID changes after deleting and recreating custom inspections, the two custom inspections before and after are not the same, and the events generated will not be associated.

X. Appendix¶

X.1 IM Platform Robot Markdown Support Documentation¶

• DingTalk Custom Robots / Custom Robot Access
• Lark Bots / Message Cards / Construct Card Content / Markdown Module
• WeCom Robots / Group Robot Configuration Instructions / markdown Type
