Display Items¶

Configurable fields or columns used to display data.

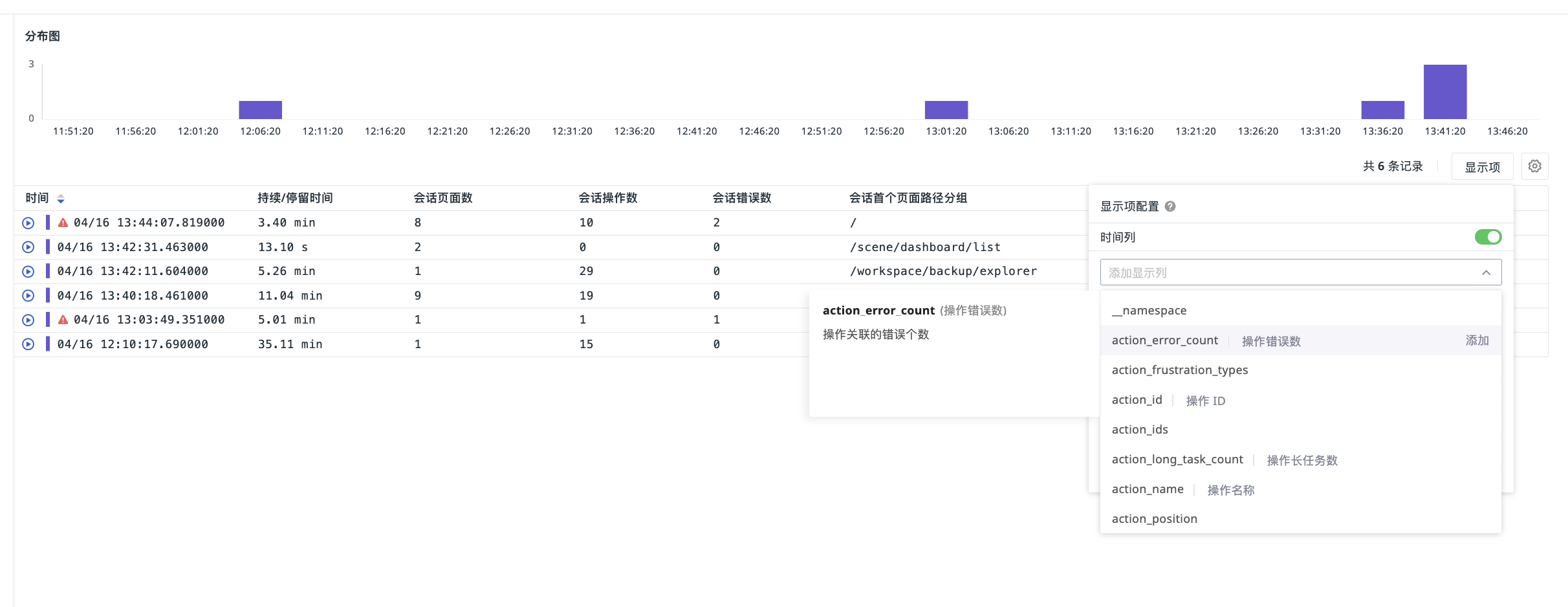

Add Display Columns¶

In the dropdown for adding display columns, select fields and add them to the display columns. You can also directly search for target fields.

If the target field is not found, you can directly enter the field name in "Add Display Column" and press Enter to complete the addition.

Manage Display Columns¶

• Customize adding, editing, deleting, or dragging display columns.

• Search for fields using keywords.

• Define display columns as preset fields so that they can be directly displayed after data is reported via Pipeline.

Manage List¶

In the Standard Mode of the Explorer list, hover over the display column and click the "Settings" button to perform the following operations on the display column:

• Ascending/Descending: Sort the values of the current field in ascending or descending order.

  • If a column other than the time field (time) is selected for sorting, the system only applies to the last 30 minutes of data within the selected time range.

• Move Column Left/Right: Move the current display column to the left or right.

• Add Column Left/Right: Add a new display column to the left or right of the current column.

• Replace Column: Replace the current display column at the current position.

• Add to Filter: If the current display column is not in the quick filter on the left, click to add it as a new quick filter item.

• Enter Dimension Analysis Mode: Directly substitute this field into the filter conditions in analysis mode.

• Remove Current Display Column.

Time Column¶

If the Explorer contains a time column, you can directly check it in the display column configuration to choose whether to display the time column in the list.
